Thorp Air Command - T18.net

Supporting Owners, Builders and Pilots of the Thorp T-18 and its variants.
It is currently Wed Dec 25, 2024 12:29 am

All times are UTC - 6 hours [ DST ]




Post new topic Reply to topic  [ 11 posts ]
Author Message
Tim Brown
PostPosted: Wed May 25, 2011 6:15 am
Full Member
Full Member

Joined: Wed Oct 21, 2009 10:24 am
Posts: 135
Images: 0
My comm antenna is behind the canopy (of my T-18), I would like to add another comm antenna for my iCom A14 and was hoping to mount it close to the existing antenna.

Is that possible? I would only have one radio or the other powered up at a time (if that matters).

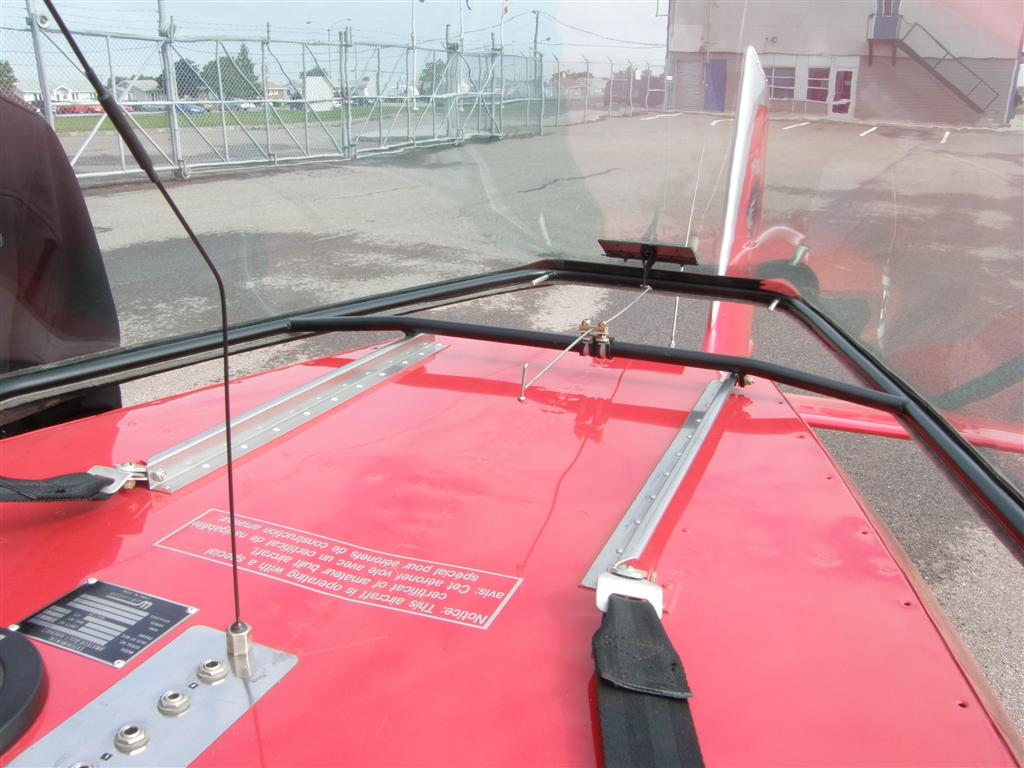

You can see from the picture there isn't much room on the turtle deck behind the canopy; the antenna under the canopy is for the ELT.



Image Insert:


Last edited by Anonymous on Wed May 25, 2011 6:15 am, edited 1 time in total.

Top
 Profile Personal album

leewwalton
PostPosted: Wed May 25, 2011 6:21 am
Administrator
Administrator
User avatar

Joined: Tue Oct 20, 2009 4:09 pm
Posts: 1715
Images: 107
Location: Houston, TX
If your only going to have one com powered up at a time you can share the same antenna and switch between them.

_________________
Lee Walton
Houston, TX
N51863,N118LW
KEFD


Last edited by admin on Wed May 25, 2011 6:21 am, edited 1 time in total.

Top
 Profile Personal album

Rich Brazell
PostPosted: Wed May 25, 2011 6:24 am
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3108
Images: 64
Location: Jamul, CA (San Diego area)
Put it on the belly, just off centerline behind the seats about 8 inches. Made my installation easy. S/S "bent" and it works 4.0. No problem with ground clearance or reception.

Lee is right...forgot about the switching.

RB


Last edited by admin on Wed May 25, 2011 6:24 am, edited 1 time in total.

Top
 Profile Personal album

Tim Brown
PostPosted: Wed May 25, 2011 7:57 am
Full Member
Full Member

Joined: Wed Oct 21, 2009 10:24 am
Posts: 135
Images: 0
Thanks for the ideas.

Rich; I was wondering if you had a picture of your install and wonder if it creates any clearance problems (close to dragging in the grass?).


Last edited by Tim Brown on Wed May 25, 2011 7:57 am, edited 1 time in total.

Top
 Profile Personal album

Rich Brazell
PostPosted: Wed May 25, 2011 11:32 am
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3108
Images: 64
Location: Jamul, CA (San Diego area)
Actual pics of the installation, no. It was not difficult. The antenna came with a template. Lay it in place and mark the hole locations. The only concern I had was a possible clearance problem getting the A/C on and off the trailer, but it is not an issue. I measured the clearance from the end of the ant. (lowest point) to the pavement and it is about 6 inches. I could have "bent" the ant. up a bit (inch or two) if clearance was a problem. You must be talking TALL grass ! Here is a pic with the ant. installed...maybe a little hard to pick out ? Like I said, I have had no problems with transmitting or receiving ground control/tower on the airport.

RB

Image Insert:

Put File Caption Here


Last edited by admin on Wed May 25, 2011 11:32 am, edited 1 time in total.

Top
 Profile Personal album

Patrick
PostPosted: Wed May 25, 2011 11:39 am
Newbie
Newbie

Joined: Thu Oct 22, 2009 6:55 pm
Posts: 11
Location: USA
Tim, I have the installation that Rich mentions on my T-18 and it works great. I can swing by the hangar tonight and snap photos inside and out of the installation if that will help?

_________________
Patrick
T-18 N8AL


Last edited by admin on Wed May 25, 2011 11:39 am, edited 1 time in total.

Top
 Profile

Tim Brown
PostPosted: Wed May 25, 2011 1:04 pm
Full Member
Full Member

Joined: Wed Oct 21, 2009 10:24 am
Posts: 135
Images: 0
Yes please and thanks Rich and Patrick :)


Last edited by admin on Wed May 25, 2011 1:04 pm, edited 1 time in total.

Top
 Profile Personal album

Patrick
PostPosted: Wed May 25, 2011 5:08 pm
Newbie
Newbie

Joined: Thu Oct 22, 2009 6:55 pm
Posts: 11
Location: USA

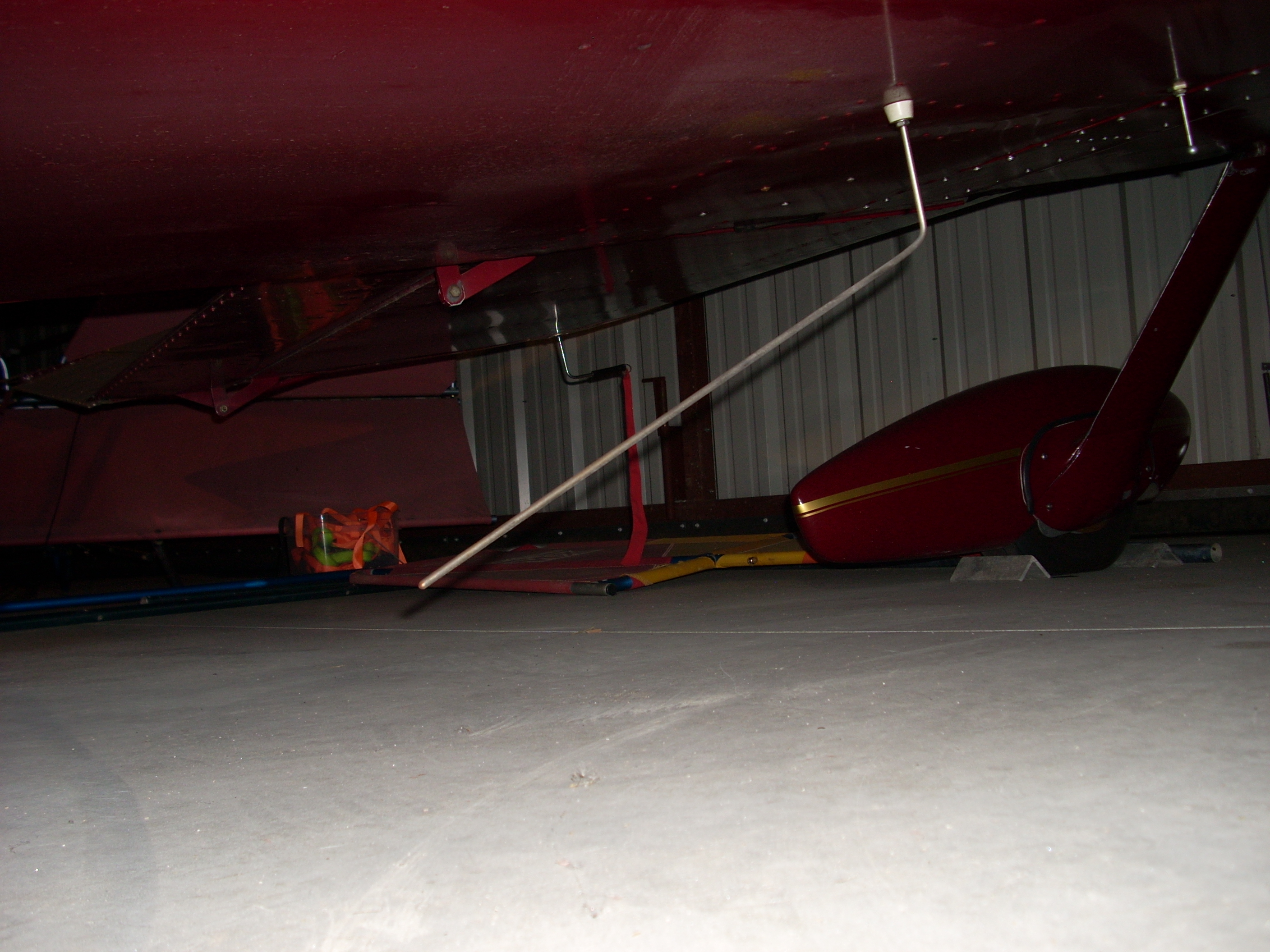

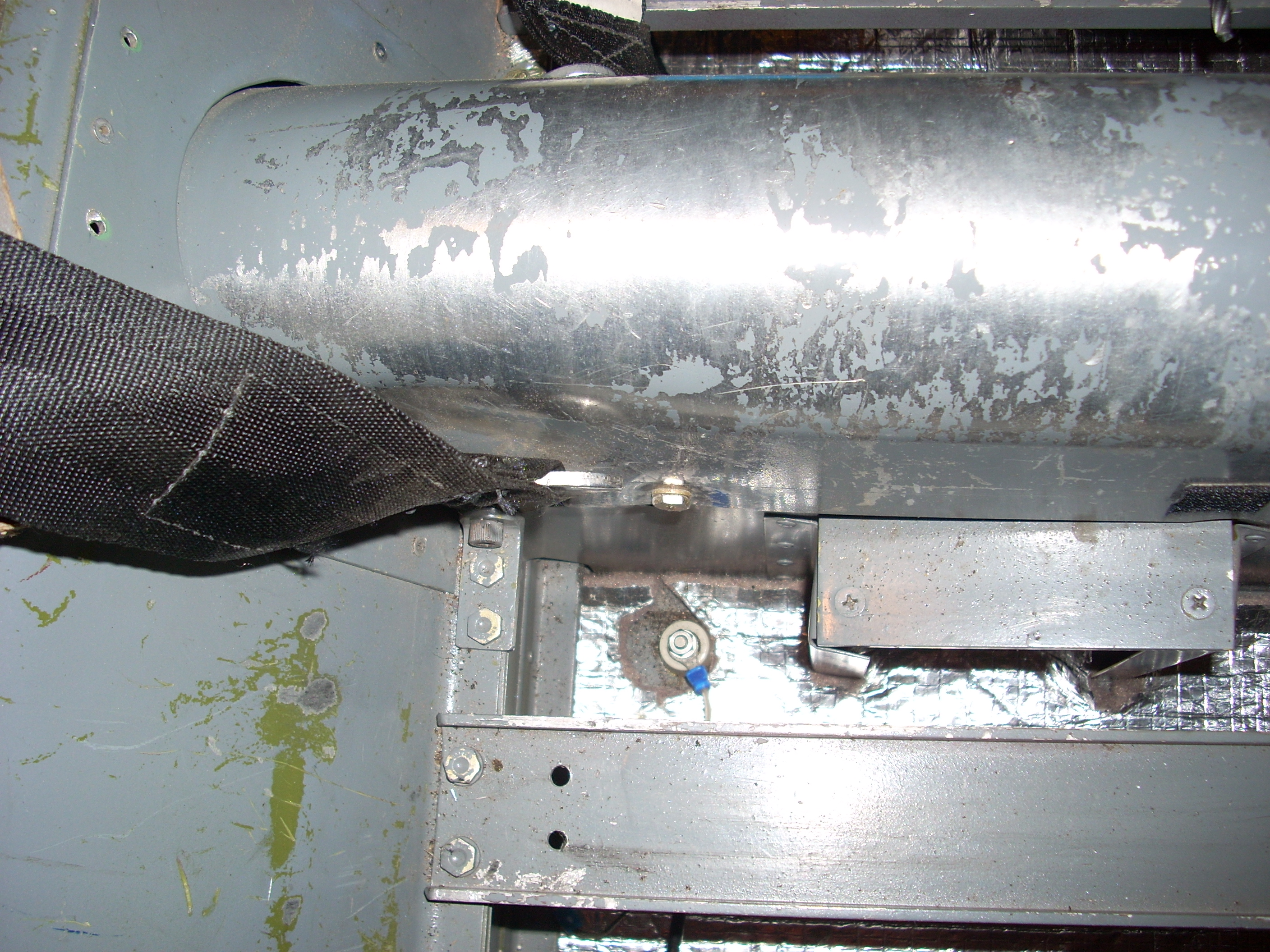

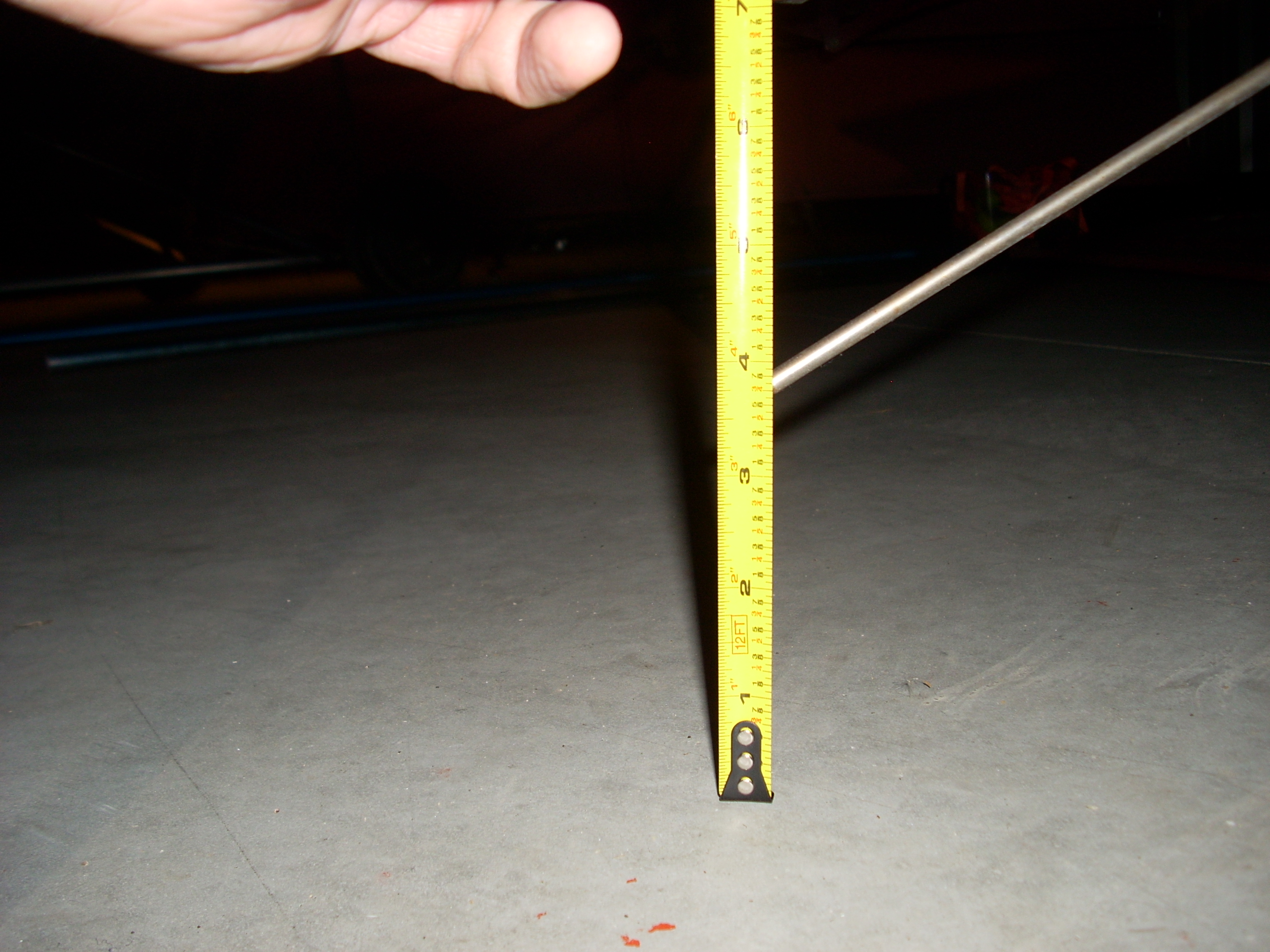

Here you go Tim. Let me know if you need better photos.

Image Insert:


Image Insert:


Image Insert:


Image Insert:

_________________
Patrick
T-18 N8AL


Last edited by admin on Wed May 25, 2011 5:08 pm, edited 1 time in total.

Top
 Profile

Patrick
PostPosted: Wed May 25, 2011 5:09 pm
Newbie
Newbie

Joined: Thu Oct 22, 2009 6:55 pm
Posts: 11
Location: USA
I forgot to mention that the previous owner/builder made this antenna himself, but you can buy them just like this for about $18 through Aircraft Spruce.

_________________
Patrick
T-18 N8AL


Last edited by admin on Wed May 25, 2011 5:09 pm, edited 1 time in total.

Top
 Profile

Bill Williams
PostPosted: Thu May 26, 2011 4:13 am
Three items on antenna's. 1. antenna switches with BNC type connectors are hard to find and expensive. The HAM radio folks make a switch, but uses PL 59 connectors and can be adapted to BNC.
2. Antenna's are a science, you can make a antenna from a coat hanger and it will work, how good will depend on you ability to cut it to the right length. Frequencies, power output depend on wave length and the antenna needs to match this frequency to be of optimum transmit quality. All this will determine quality of voice and distance. 3. Somewhere I read that antenna's need to be 18" from each other or airframe to prevent feedback.


Last edited by admin on Thu May 26, 2011 4:13 am, edited 1 time in total.

Top


Tim Brown
PostPosted: Thu May 26, 2011 4:24 pm
Full Member
Full Member

Joined: Wed Oct 21, 2009 10:24 am
Posts: 135
Images: 0
I just bought the 45 degree antenna (for experimental a/c)for $22 with 10 ft of RG58A/U and a BNC male plug (to plug into my A-14 from ACS). I am going to mount it on the bottom, thanks all.


Last edited by Tim Brown on Thu May 26, 2011 4:24 pm, edited 1 time in total.

Top
 Profile Personal album

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 11 posts ]

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 6 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:

[ Time : 0.186s | 11 Queries | GZIP : On ]
