| Author: | fytrplt [ Sat Nov 15, 2014 7:44 am ] |
| Post subject: | Baggage Compartment |
I am at the point of designing and roughing in the baggage compartment in my project Thorp. I know what I did for my flying airplane, of course, but I am looking for any neat tricks in this area. Since the plans don't show how to finish the area behind the seats, I'm asking for what works and what you wish you did better. Thanks in advance. |
|
| Author: | Rich Brazell [ Sat Nov 15, 2014 12:44 pm ] |
| Post subject: | Re: Baggage Compartment |

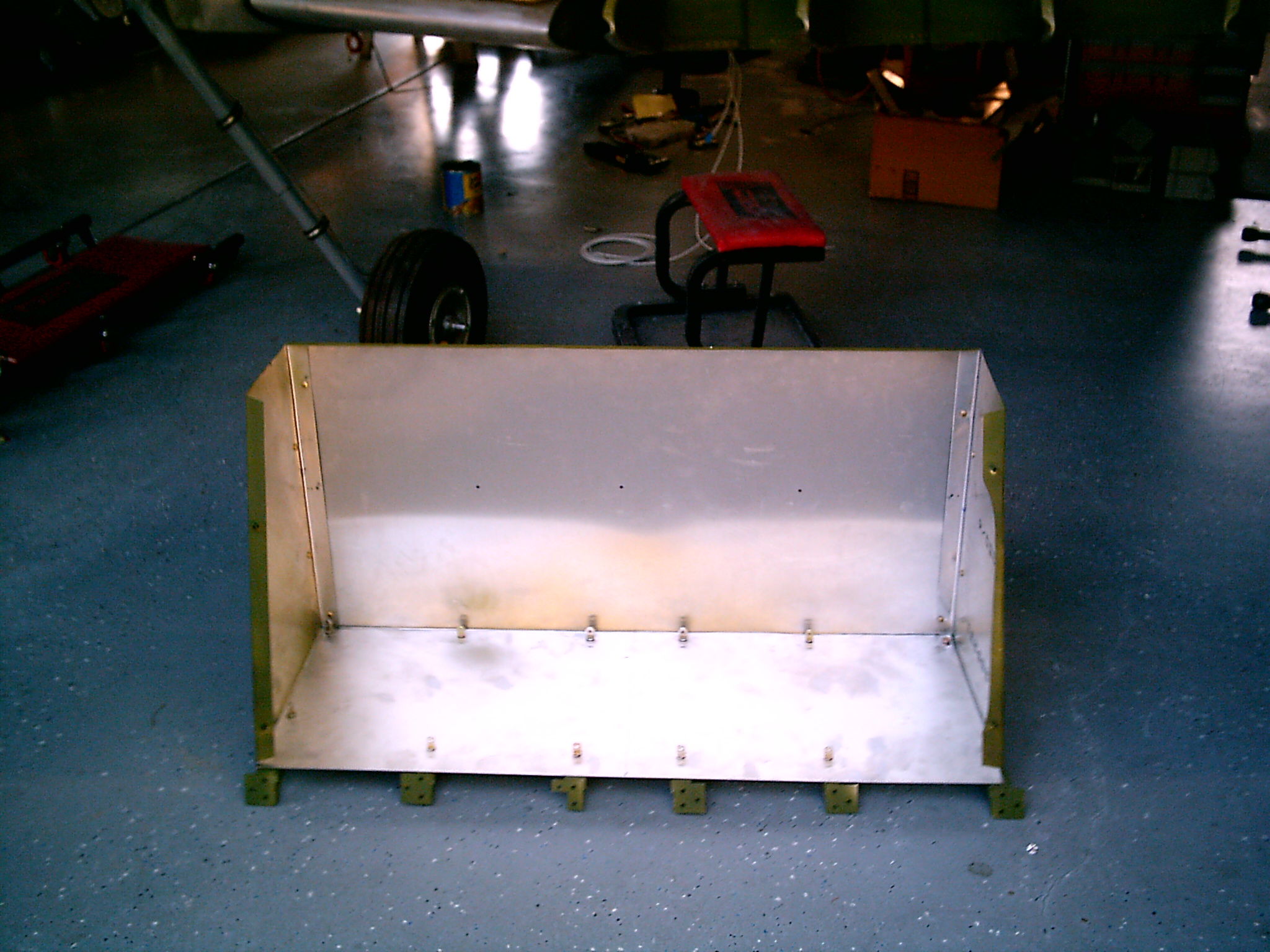

Attachment: S18%20Baggage%20compt%20and%20Crow%20restraints%20002.jpg [ 1010.38 KiB | Viewed 20864 times ]
|
|
| Author: | dan [ Sat Nov 15, 2014 7:54 pm ] |
| Post subject: | Re: Baggage Compartment |
I have always liked the compartment Rich Designed, not too big, not too small, it's about the right size. I opted to use the entire area and it's ok, it can be viewed on the old mutual aid society album section. I can stand in it, it is strong and tight, just a bit much for the traveling I do. I guess the space is there if I need it, but I don't think it was really needed.....Dan |
|
| Author: | Scott Stine [ Sun Nov 16, 2014 12:50 pm ] |
| Post subject: | Re: Baggage Compartment |
I just finished my baggage comp and essentially copied David Reads design of removable TUBS that sit in a frame level with the top of the elevator push pull tube. It utilizes the maximum space available with the minimal amounts of materials. The tubs are removable for access to the flap motor and the pulleys. Top of the aft baggage wall is removable for access to tail. It is mounted on the back of the bulkhead since my flange is bent forward......if you are building now don't forget to face the flange aft to make installation of the baggage comp easier. Will include pics tonight. This installation can be seen on DR, DW, and my project. |
|
| Author: | jrevens [ Sun Nov 16, 2014 4:39 pm ] |
| Post subject: | Re: Baggage Compartment |
Scott Stine wrote: I just finished my baggage comp and essentially copied David Reads design of removable TUBS that sit in a frame level with the top of the elevator push pull tube. It utilizes the maximum space available with the minimal amounts of materials. The tubs are removable for access to the flap motor and the pulleys. Top of the aft baggage wall is removable for access to tail. It is mounted on the back of the bulkhead since my flange is bent forward......if you are building now don't forget to face the flange aft to make installation of the baggage comp easier. Will include pics tonight. This installation can be seen on DR, DW, and my project. Mine's basically the same - 2 lift out tubs. I riveted on 3/4" angles to the side skins for side support. Back wall is .016" with stiffeners and a 3/4" angle riveted along the lower edge. It attaches to the side angles at each end with screws & nut plates. The back wall panel is then attached to the bulkhead with winged camlocks. Coming down the center over the push-pull tube is a "T" beam made from 2 angles riveted together. That is attached to the bulkhead behind the seats, which I made with a 3/4" angle running the full width at the level of the bottom of the opening (I "adjusted" that extrusion to something less than 90 deg. to match the plane of the side angles). I basically framed out that opening in the seat back frame all the way around with extruded angle. I don't have any digital pictures right now. I know that whatever you make will be good, Bob. |
|
| Author: | Ryan Allen [ Sun Nov 16, 2014 6:48 pm ] |
| Post subject: | Re: Baggage Compartment |
I would be interested to see some pictures of these baggage compartments installed in the plane. |
|
| Author: | david read [ Sun Nov 16, 2014 9:11 pm ] |
| Post subject: | Re: Baggage Compartment |

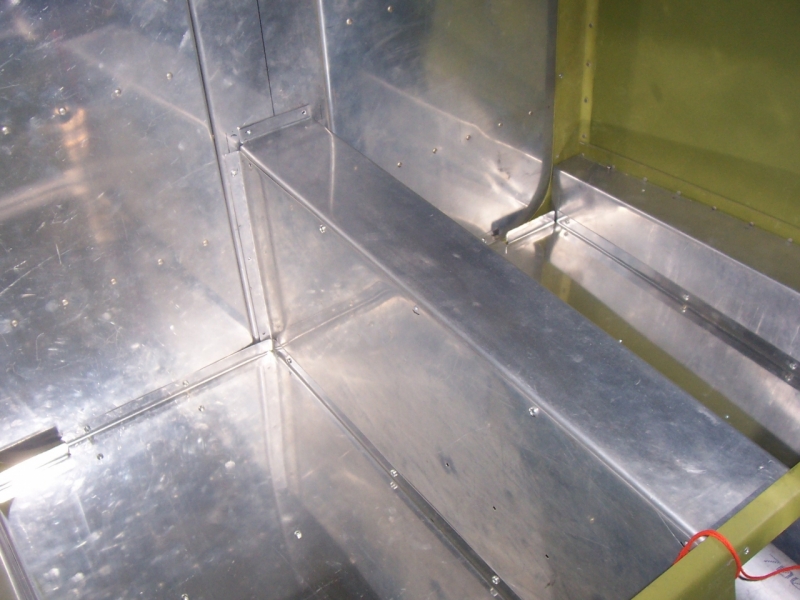

  That should be a couple pics of Scott's baggage compartment. The tubs are made of .020 and have around 1/2" clearance to the belly skin, rudder and flap cable mechanisms. He reinforced the framework enough that you can lay across them while working back in the tail cone. Karen and I bought a couple of duffle bags that fit snugly into the tubs. Pack them full, drop them in and you can lay longer stuff across the top. I believe you can't have too much storage space on occasion, but that doesn't mean you have to fill it up every trip. |
|
| Author: | Scott Stine [ Sun Nov 16, 2014 9:37 pm ] |
| Post subject: | Re: Baggage Compartment |

|
|
| Author: | Scott Stine [ Sun Nov 16, 2014 9:39 pm ] |
| Post subject: | Re: Baggage Compartment |
|
|
| Author: | Scott Stine [ Sun Nov 16, 2014 9:45 pm ] |
| Post subject: | Re: Baggage Compartment |
All of the pieces of the structure are bent up pieces of 020 and 032. The only extrusions are on the aft lower baggage comp wall. They are vertical and transfer load from either side of the center piece to the bulkhead and floor and centerline extrusion. |
|
| Author: | Scott Stine [ Sun Nov 16, 2014 9:49 pm ] |
| Post subject: | Re: Baggage Compartment |

|
|
| Author: | Scott Stine [ Sun Nov 16, 2014 9:53 pm ] |
| Post subject: | Re: Baggage Compartment |
Tubular brace is on the aft outboard corners. An area that has proven through extensive field research to be a weak point. |
|
| Author: | Bill Williams [ Mon Nov 17, 2014 5:44 am ] |
| Post subject: | Re: Baggage Compartment |
Baggage, you guys need to travel with my wife. She can take anything not bolted down. On a trip to California I weighed the baggage in at 138 pounds. Besides you will need room for Model A Ford blocks and crankshaft. Make it big. I do like the removable pans for access to the inards. |
|
| Author: | dickwolff [ Mon Nov 17, 2014 6:40 am ] |
| Post subject: | Re: Baggage Compartment |
Another great thread, guys. Love the pics. This is my last area for my restore as well. Damn..... suddenly the end is looking further away. Does anyone have a baggage compartment kit that I can just shake out of the box? ;-) D |
|
| Author: | ljkrume [ Mon Nov 17, 2014 2:49 pm ] | ||||
| Post subject: | Re: Baggage Compartment | ||||

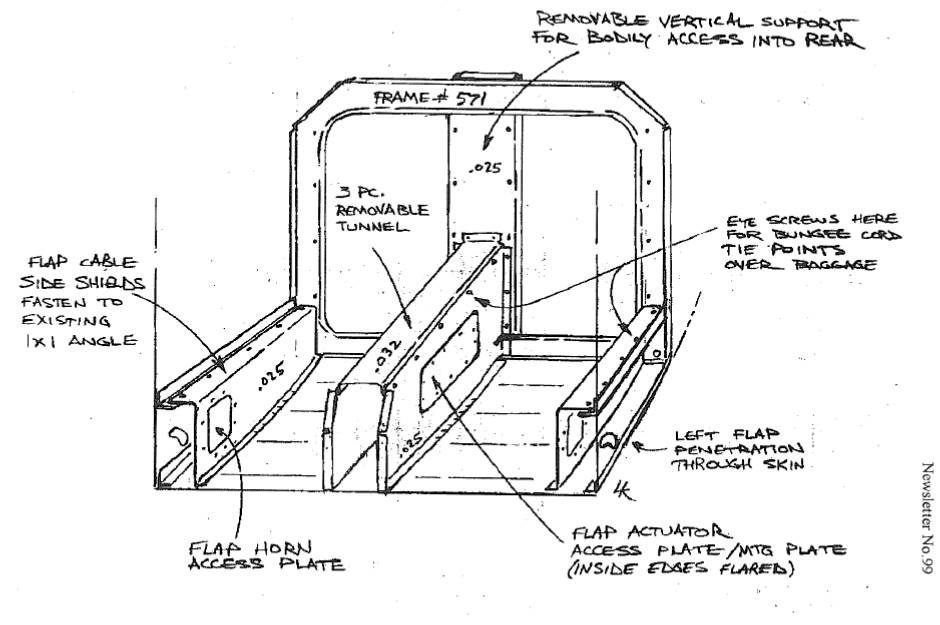

Here's a version of baggage compartment I posted in NL#99 (1996). Actually added a floor about 2" off of the fuselage bottom with short ribs between bulkheads for strength. The intention was for max volume for "baggy" things, although it does handle weight easily. Les Krumel, Albuquerque
|
|||||
