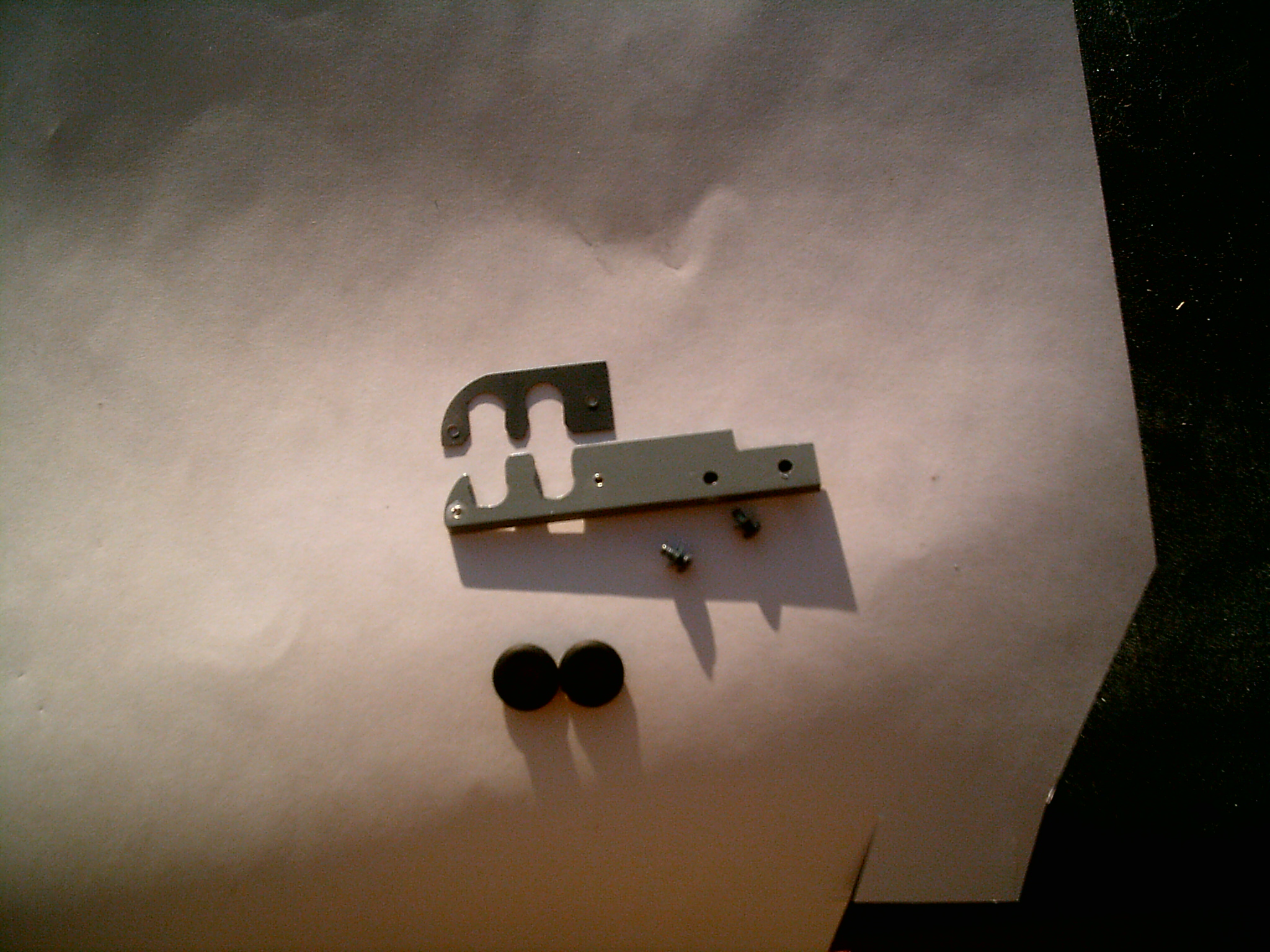

If you need a "cheap" (not cheaply made) ign. wire holder/standoff to organize/protect your wires, try this.

Made from scrap angle and 0.020 sheet.

I used a unibit to drill the holes one size larger than the required hole for the grommet. Round off the corners to make grommet insertion easier. Drill and tap for a 4-40 screw. Cut one side of the grommet to slip over the ign wire. Attach a nut plate for easy attach/removal. Sure beats the high cost of using store bought holders. [8D]

RB
NX115RX

Image Insert:


Put File Caption Here

Great idea. Thanks for sharing.
