Ryan Allen
 Post subject: cowl fit question
PostPosted: Wed Nov 10, 2021 7:36 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana

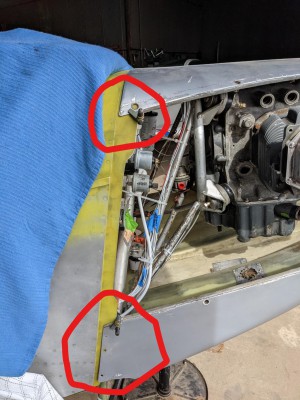

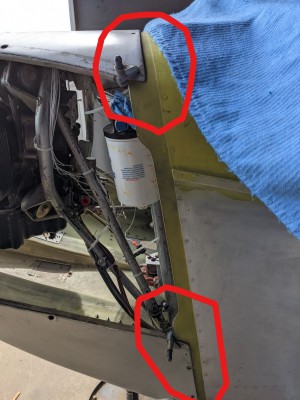

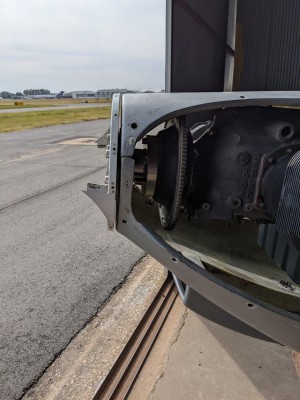

I bought a used cowl hoping I could use it on my project.....turns out maybe not. You can see in the first picture that I am happy with the spacing between the cowl and the spinner bulkhead. But when it fits at the spinner, look at how off-center and crooked the rear of the cowl meets the fuselage. Whats the best way to fix this?
Attachment:
spinner cowl.jpg
spinner cowl.jpg [ 312.32 KiB | Viewed 1846 times ]
Attachment:
pax side.jpg
pax side.jpg [ 2.63 MiB | Viewed 1846 times ]
Attachment:
pilot side.jpg
pilot side.jpg [ 2.46 MiB | Viewed 1846 times ]


Top
 Profile Personal album

fytrplt
PostPosted: Wed Nov 10, 2021 9:48 pm
Hero Member
Hero Member
User avatar

Joined: Tue Oct 20, 2009 8:07 pm
Posts: 1097
Images: 2
Location: Lakeland, Florida, USA
Make some two-ply fiberglass sheet. You lay it up on some sheet metal well waxed. It will be flexible enough to scarf-bond to your existing parts. Then glass a third layer on to stiffen the whole thing up. Make it over-sized and trim to fit. Remember, new motor mounts will sag at least a quarter of an inch once they take a set.

_________________
Bob Highley
N711SH
SN 835
KLAL


Top
 Profile Personal album

Ryan Allen
PostPosted: Thu Nov 11, 2021 9:42 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
ok, thanks Bob, thats what I'll do, much appreciated!


Top
 Profile Personal album

James Grahn
PostPosted: Fri Nov 12, 2021 1:20 pm
Hero Member
Hero Member

Joined: Sat Oct 24, 2009 7:16 pm
Posts: 1327
Images: 0
Location: USA
Just FYI, after more than a year of waiting, our fiberglass parts are again being manufactured.
Cubes


Top
 Profile Personal album

Ryan Allen
 Post subject: Bending method?
PostPosted: Thu Dec 09, 2021 1:16 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
I need to make a 4 foot long bend with a .090 (3/32) radius. I don't have a sheet metal brake handy. Anyone have a simple method to bend this .032 thick aluminum sheet with a 3/32" radius?

In case your wondering, I am trying to bend the rear spar on the inner wing. I goofed up drilling a hole on my existing spar, so I had to drill it out and replace it. Bummer.


Top
 Profile Personal album

James Grahn
PostPosted: Thu Dec 09, 2021 9:39 pm
Hero Member
Hero Member

Joined: Sat Oct 24, 2009 7:16 pm
Posts: 1327
Images: 0
Location: USA
You really need a brake. It’s hard enough to make them an accurate size.
Cubes


Top
 Profile Personal album

Ryan Allen
PostPosted: Fri Dec 10, 2021 4:14 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana

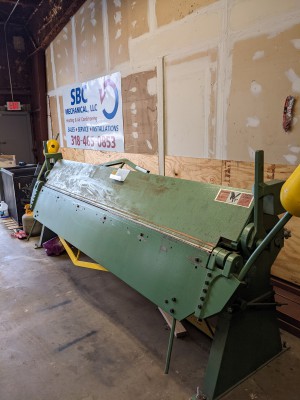

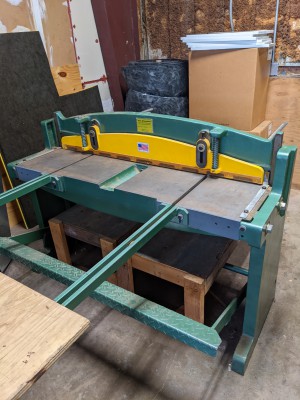

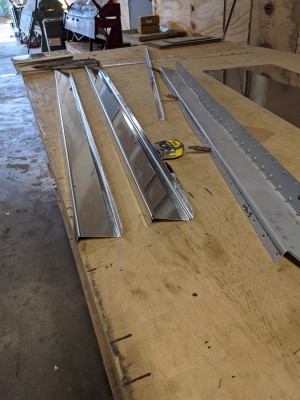

We'll, you guys with brakes and shears are cheating dogs! I found myself a brake and stomp shear to make my spar. That was too easy! Here are a couple pics.
Attachment:
PXL_20211210_203143864.jpg [ 3.35 MiB | Viewed 1424 times ]


Attachment:
PXL_20211210_194042342.jpg [ 3.19 MiB | Viewed 1424 times ]


Attachment:
PXL_20211210_193930052.jpg [ 3.78 MiB | Viewed 1424 times ]


Top
 Profile Personal album

Ryan Allen
 Post subject: Rivet sequence help
PostPosted: Fri Dec 17, 2021 3:45 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
I am re-installing my rear spar on the center wing section. I can't figure out the sequence in which to rivet it all back together so that I can drive all the rivets. I was going to peel the top skin back and install the rear spar. Then, rivet the top skin back on. But, the wing walk stiffeners are keeping me from getting the inner portion of the aftmost skin-to-rib area driven. I know it can be done, I just can't think through the correct sequence.

Attachment:
image000000.jpg [ 919.85 KiB | Viewed 1394 times ]


Top
 Profile Personal album

Ryan Allen
PostPosted: Fri Dec 17, 2021 6:23 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana

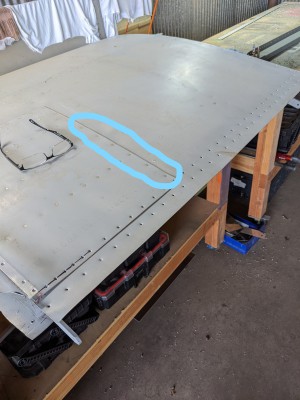

the circled rivets are the rivets which I cant reach due to the wing walk stiffeners. The stiffeners do not let the skin "peel back" but rather keeps its stiff.

Attachment:
wing pic.jpg
wing pic.jpg [ 2.83 MiB | Viewed 1391 times ]


Top
 Profile Personal album

fytrplt
PostPosted: Fri Dec 17, 2021 9:38 pm
Hero Member
Hero Member
User avatar

Joined: Tue Oct 20, 2009 8:07 pm
Posts: 1097
Images: 2
Location: Lakeland, Florida, USA
The inboard rib has to come out.

_________________
Bob Highley
N711SH
SN 835
KLAL


Top
 Profile Personal album

Ryan Allen
PostPosted: Sat Dec 18, 2021 7:54 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
ah, yes, ok, I see that now. That thought didn't strike me. Thank you for the tip.


Top
 Profile Personal album

Ryan Allen
PostPosted: Sun Dec 19, 2021 6:38 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana

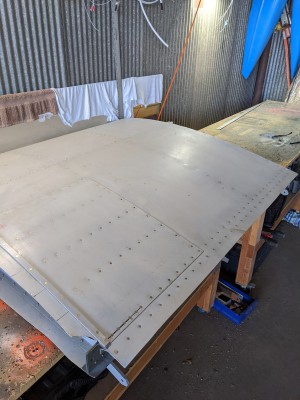

Well, I got humpty dumpty all put back together again. Thanks for all the tips.

Attachment:
image000000.jpg [ 1001.29 KiB | Viewed 1372 times ]


Top
 Profile Personal album

Ryan Allen
PostPosted: Sat Apr 09, 2022 6:58 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
Where does everyone buy their T18 exhaust system from?


Top
 Profile Personal album

Rich Brazell
PostPosted: Sat Apr 09, 2022 8:56 pm
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3060
Images: 64
Location: Jamul, CA (San Diego area)
I used Custom Aircraft Parts
Aircraft Exhaust Systems Specialist
14374 Olde Hwy. 80
El Cajon, CA 92021
http://www.customaircraft.com

RB O0
NX115RX


Top
 Profile Personal album

Ryan Allen
PostPosted: Mon Apr 25, 2022 6:53 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1042
Images: 0
Location: Louisiana
thanks Rich. i'll give them a call.
