Author:  Derek Fritschle [ Mon Oct 10, 2011 7:12 pm ]
Post subject:  Derek Fritschle - T-18 project #1
Here are some pictures of my T-18 rebuild/refurbish project. I acquired the project in early January 2011 after the previous owner had a landing mishap and banged up the wings and bent the gear. Since the plane had its first flight nearly 25 years ago I am taking the oppurtunity to not only repair the damage but also make some updates/upgrades.

Image Insert:

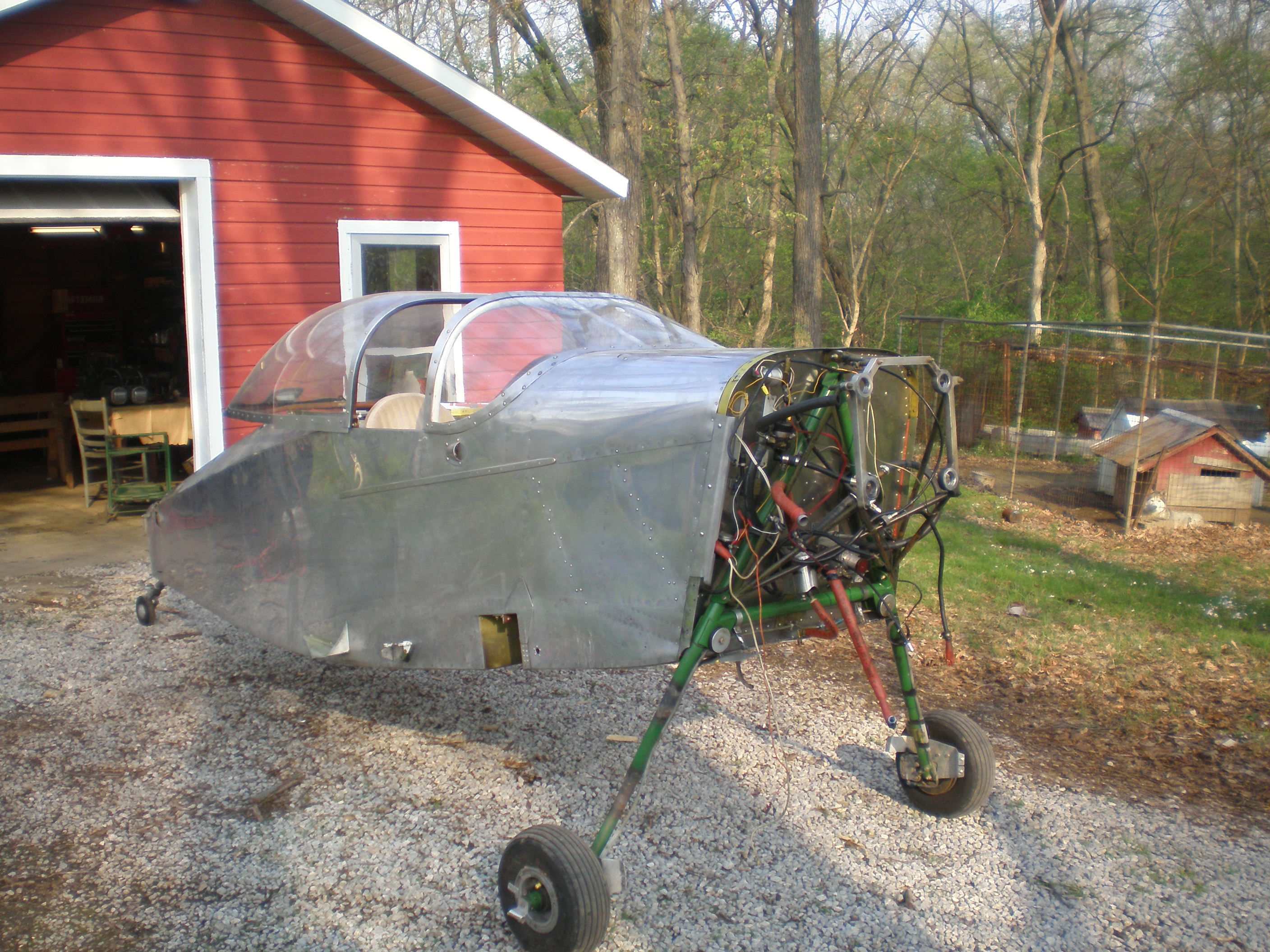

Fuselage before

Image Insert:

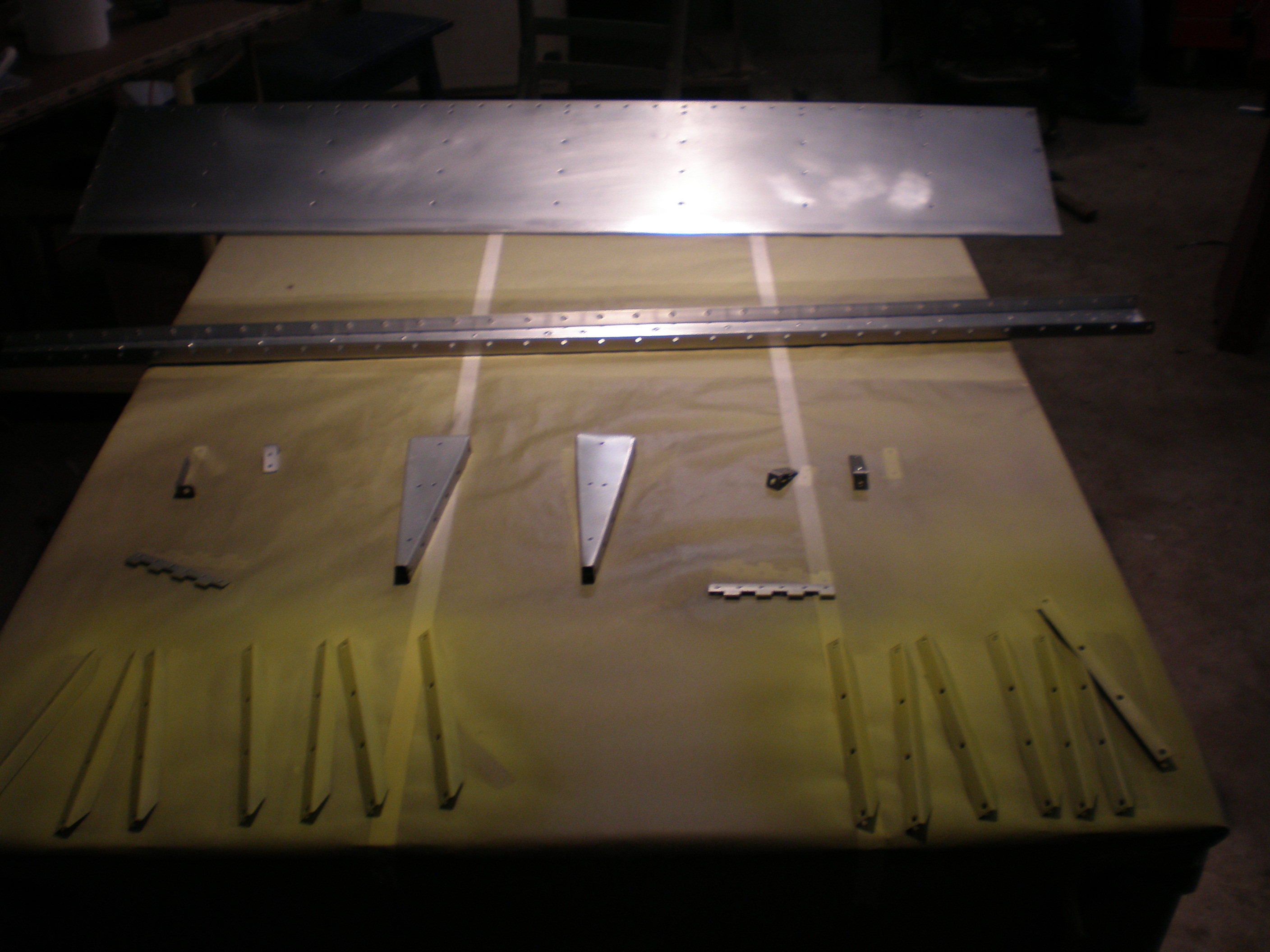

My First Assembly Ready to Rivet

Image Insert:

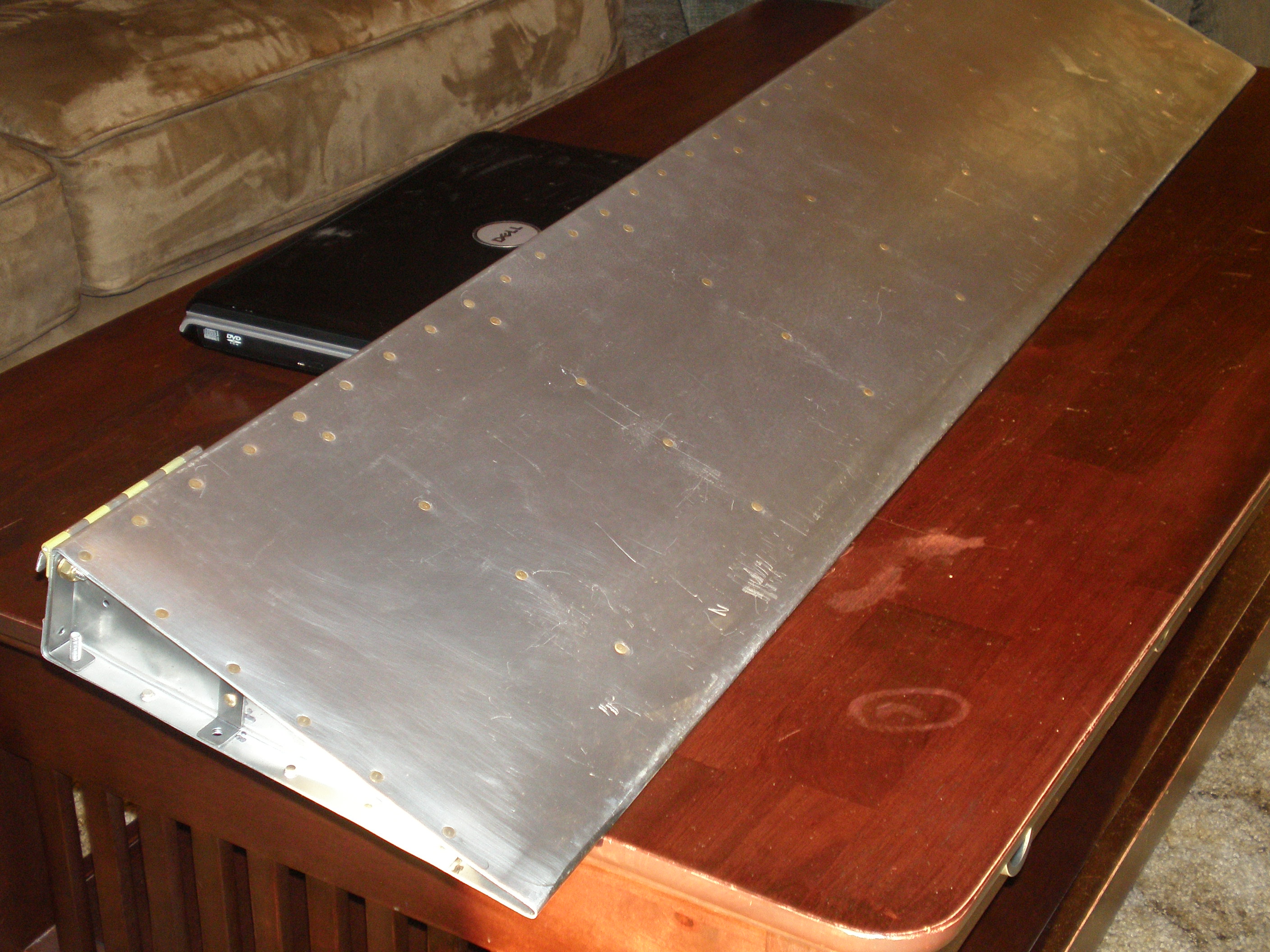

All Riveted up

Image Insert:

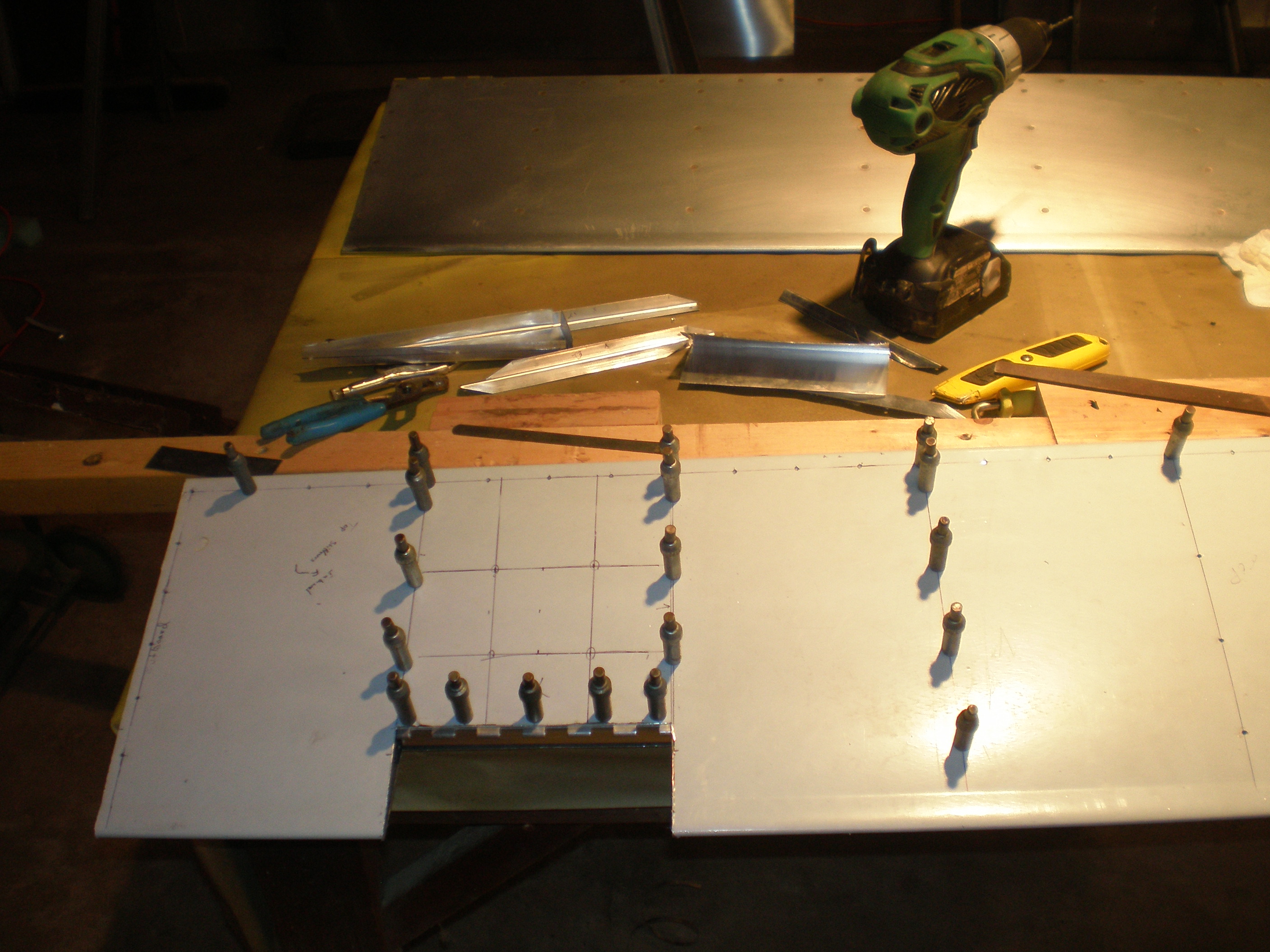

Roll Trim Tab Installation

Image Insert:

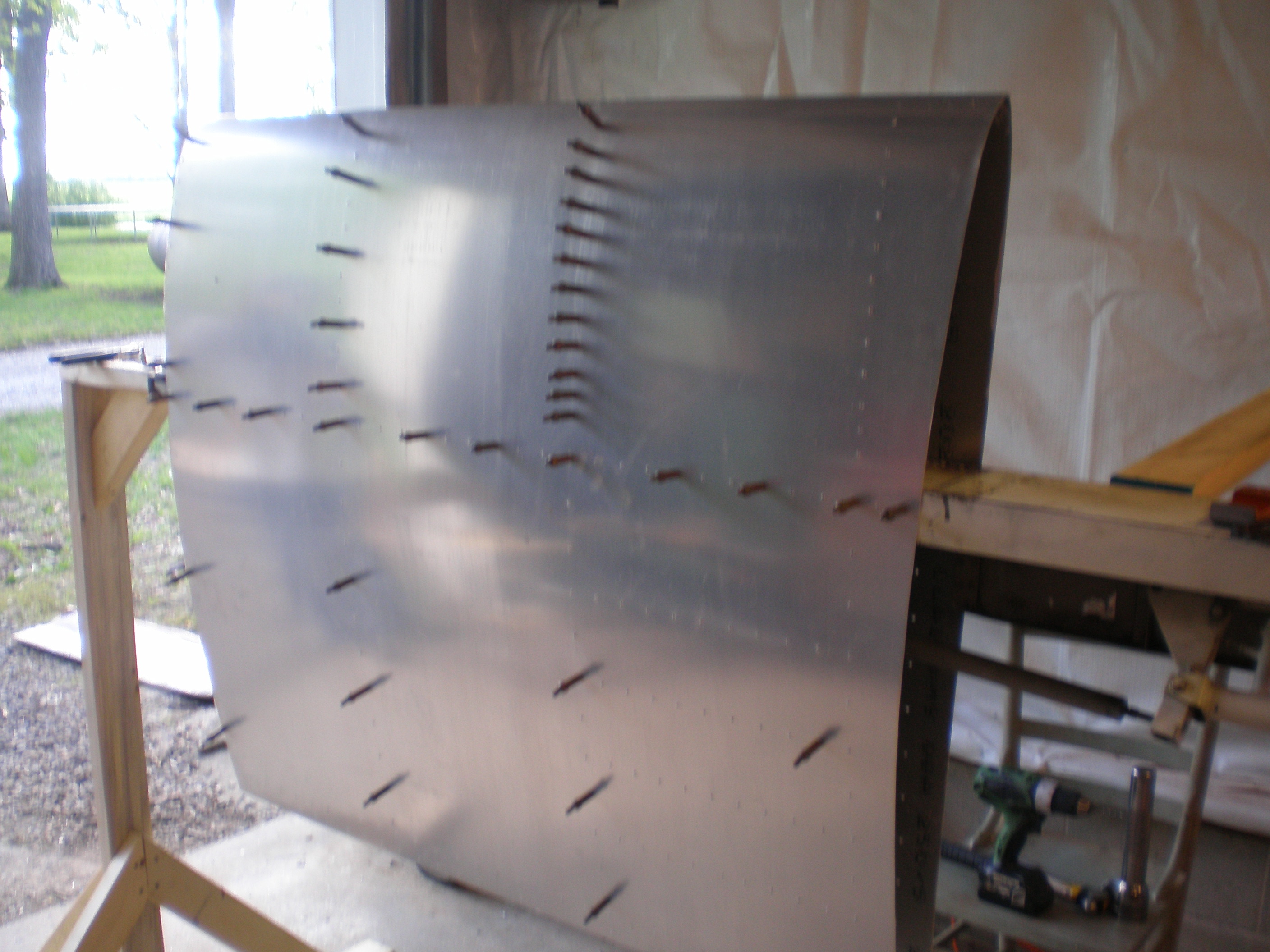

Center Section Re-Skin Nearing Completion

Image Insert:

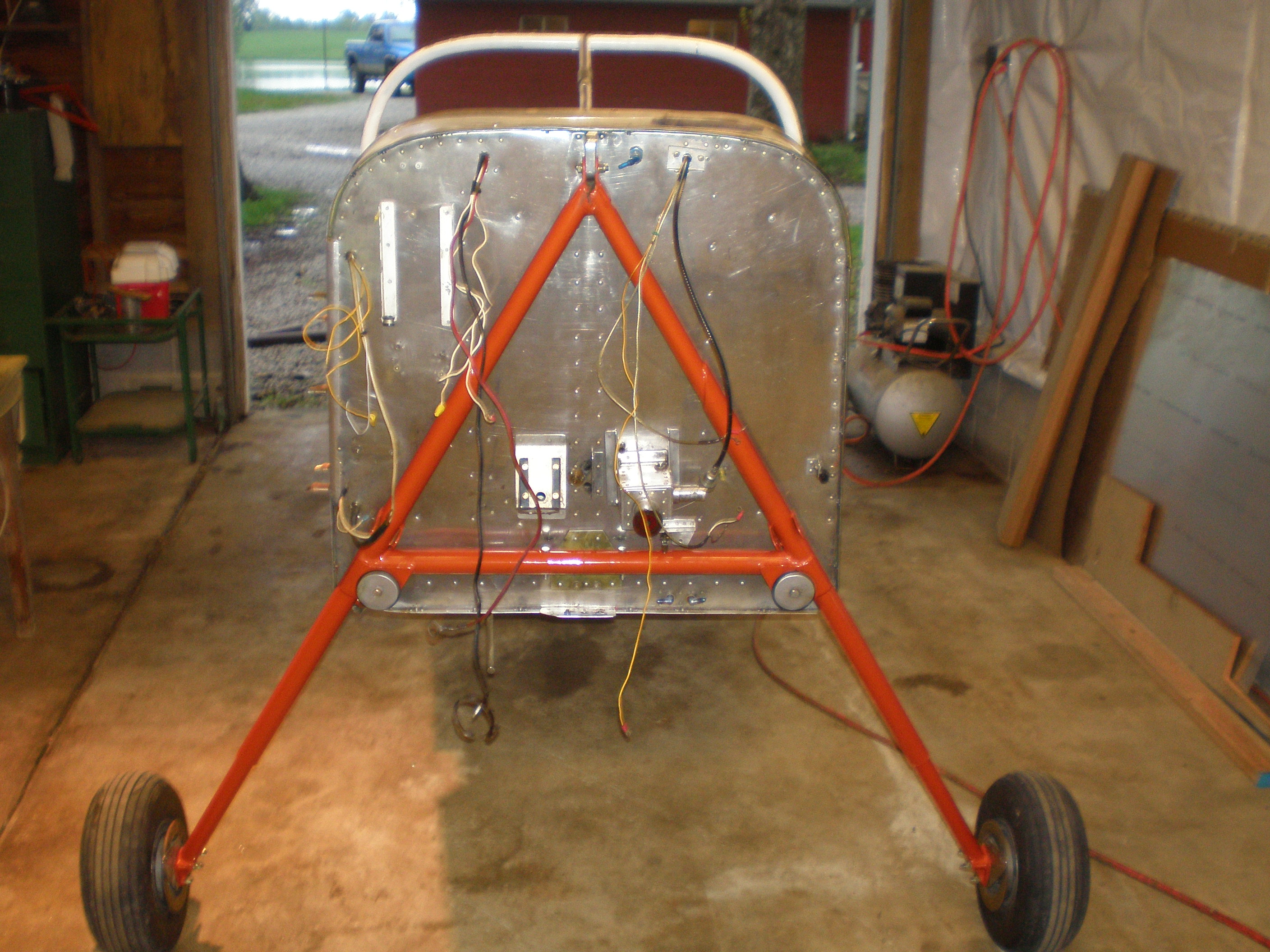

Back on Straight Legs

Image Insert:

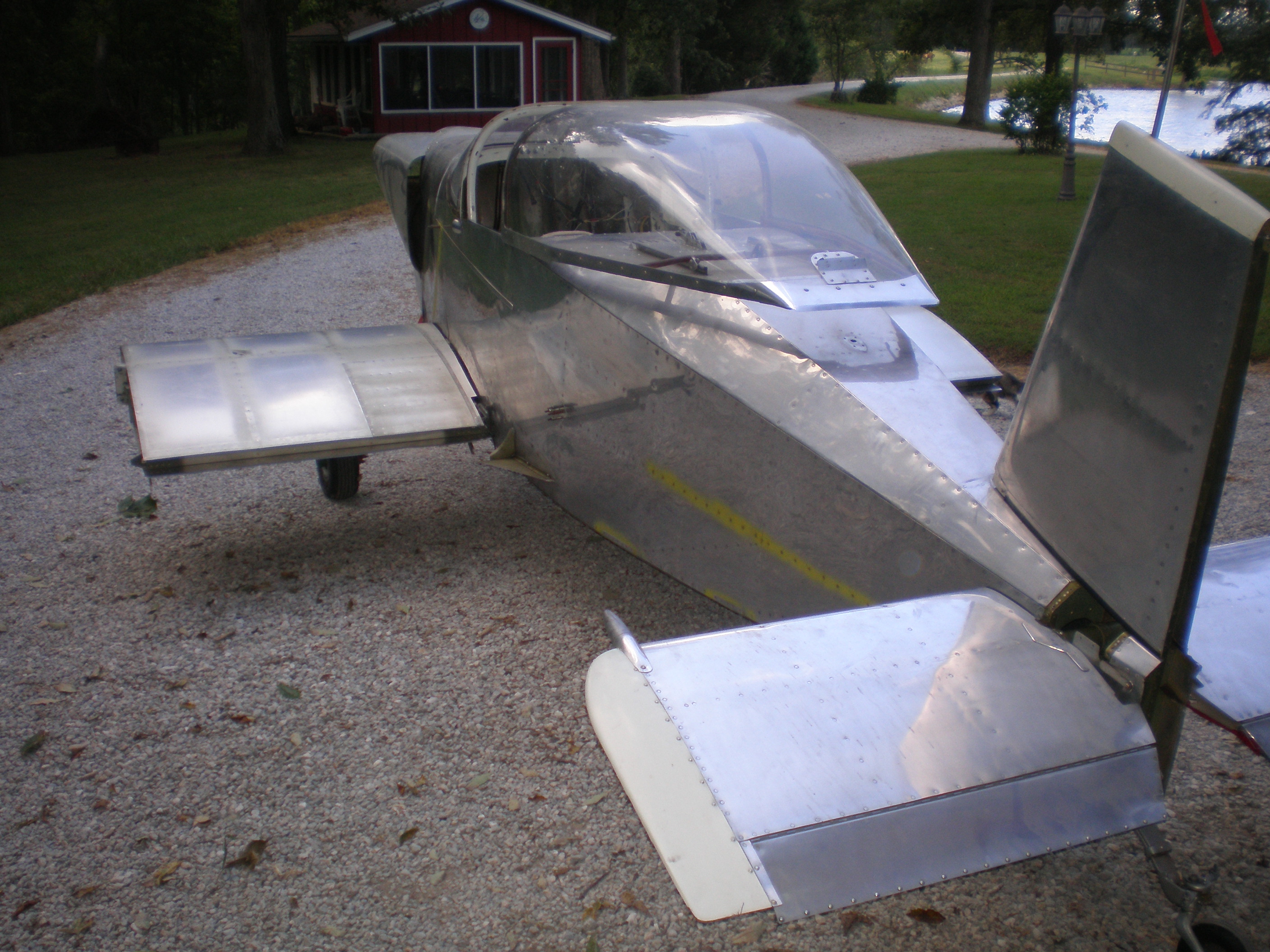

The Most Complete the A/C has looked so far. (Looks can be very deceiving.)
Author:  Rich Brazell [ Mon Oct 10, 2011 7:37 pm ]
Post subject:  Derek Fritschle - T-18 project #1
Looks like you are doing a fantastic job ! Having never been on the repair end of a project my hat is off to you !

RB
Author:  leewwalton [ Mon Oct 10, 2011 8:08 pm ]
Post subject:  Derek Fritschle - T-18 project #1
Looking great Derek! Looks like KY dam 2012 is within reach!
Author:  bfinney [ Tue Oct 11, 2011 12:25 pm ]
Post subject:  Derek Fritschle - T-18 project #1
So, how many Thorps are there in Olney, IL?
Inquiring minds want to know.
Author:  Derek Fritschle [ Tue Oct 11, 2011 12:51 pm ]
Post subject:  Derek Fritschle - T-18 project #1
Current count (projects included):4 in Olney, plus one 25 mi. away in Vincennes, IN. It won't be long and an entire squadron of RVs won't stand a chance around these parts.
Author:  cgifly2 [ Sat Dec 10, 2011 12:12 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Dereck Project looks good! I am in the same boat ...errr plane. A complete rebuild of a 30+ year old airplane. Was wondering did you replace the firewall? Or just real good at cleaning? I am right on the verge of wanting to replace mine along with the top header skin. Both just have to many holes that dont belong and I really want to change the windshield trim to (non trim) flow into the skin. But am wondering if any who have done it feel it was worth it?
Skeet
Author:  Rich Brazell [ Sat Dec 10, 2011 8:25 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Skeet: It is worth it...IMHO. I tried to attach pics of my "trim less" windshield but could not figger out how to attach the pics from my gallery ? Bob Highley ( I think it was Bob ? ) has a tool to make the radius bend on the skin. He has pics also of the tool and the bend for his windshield.

RB
Author:  cgifly2 [ Sun Dec 11, 2011 2:09 am ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Well if you ever figure out how to do the pics please do as you know the saying. I wont go on with a thousand words ;D
Skeet
Author:  fytrplt [ Sun Dec 11, 2011 3:19 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
A couple of shots of the above topic:

Attachment:
Windshield install pix 008.jpg
Windshield install pix 008.jpg [ 627.71 KiB | Viewed 13326 times ]


Attachment:
Windshield install pix 009.jpg
Windshield install pix 009.jpg [ 577.93 KiB | Viewed 13326 times ]


Attachment:
Windshield install pix 001.jpg
Windshield install pix 001.jpg [ 652.79 KiB | Viewed 13326 times ]
Author:  cgifly2 [ Sun Dec 11, 2011 3:35 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Thanks for the pics Bob. I have 2 questions. 1 What did you use to bolt the windshield on? 2 And do you think it would be possible to use an English wheel on that skin before mounting it?
Author:  Rich Brazell [ Sun Dec 11, 2011 5:27 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
I installed my windshield pretty much the same way Dan Eggleston did. Installed brackets to the inside frame, attached the weather strip and then pushed the glass up against the fus. skin and tightened the brackets. I think I only used 4 screws on the sides to attach the glass to the skin. Also no trim strip was installed.

RB

Attachments:
S-18 windshield and canopy trim strips 001.jpg
S-18 windshield and canopy trim strips 001.jpg [ 1.05 MiB | Viewed 13316 times ]
Author:  cgifly2 [ Sun Dec 11, 2011 8:50 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Got ya thanks ;)
Author:  fytrplt [ Wed Dec 14, 2011 9:02 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Skeet,

I used a .040 strip with nutplates for the area behind the instrument panel. The screws aft of the panel are secured to the cockpit trim piece with stainless nuts.
Author:  Derek Fritschle [ Fri Dec 30, 2011 8:55 am ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Here is a progress report on my project. It has been pretty slow going due to lack of time but hopefully the next few months are better. As you will see most of my recent progress has been adding conveniences that are standard on most t-18s. The next item on my agenda is replacing the boot cowl so I can tuck my windshield inside.

Attachments:
File comment: Another vital access panel
rear inspection cover.JPG
rear inspection cover.JPG [ 89.73 KiB | Viewed 13179 times ]
File comment: Here is a shot with the removable panel in place.
Floorboard 2.JPG
Floorboard 2.JPG [ 82.11 KiB | Viewed 13179 times ]
File comment: This is a mod I had not planned on doing, but after a couple of head first trips down towards the rudder pedals I would recommend it to anyone.
floorboard 1.JPG
floorboard 1.JPG [ 108.66 KiB | Viewed 13179 times ]
Author:  leewwalton [ Fri Dec 30, 2011 12:31 pm ]
Post subject:  Re: Derek Fritschle - T-18 project #1
Looks great Derek!

I had better step it up ... you're a bit passed me I think!
