I am changing from veneer type push / pull engine controls to a quadrant setup. Has anyone set there quadrant to the right of the flap handle? This seems to be the best location for me when hanging the quadrant from the instrument panel. Additionally, anyone looking for a set of used veneer style throttle, prop and mixture controls I can make you a heck of a deal.

Phil Albee
118BC


Top
 Profile Personal album

Rich Brazell
PostPosted: Sun Jan 29, 2017 11:00 am
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3108
Images: 64
Location: Jamul, CA (San Diego area)
Attachment:
Final assembly 003.jpg
Final assembly 003.jpg [ 1.42 MiB | Viewed 11369 times ]
Attachment:
Picture%20047.jpg [ 249.03 KiB | Viewed 11369 times ]
FWIW this is what I did...the throttle is just left of centerline . It is a custom set-up that I made from a solid block of acrylic . I was going to go with a "Piper" type unit , but they were too big for my lady like hands ! :o I also designed it so all the push/pull cables were the same P/N (all the same length) . There may be other types of quads that may fit in the space , but I did not find one . ??? I suppose you could mount the unit to the right of the flap handle ? ::)

RB O0


Top
 Profile Personal album

1albee
PostPosted: Mon Jan 30, 2017 4:21 am
Sr. Member
Sr. Member

Joined: Sat Oct 31, 2015 6:58 pm
Posts: 172
Images: 0
Rich,
got it install yesterday and did not like how things were. It made the right seat fit for someone only 5' tall. I am looking at other options, like moving quadrant more to the center and ending up with a very short flap handle or go to electric flaps. I am thinning on it.
By the way you have a nice install!!!

Thanks Phil


Top
 Profile Personal album

ljkrume
PostPosted: Mon Jan 30, 2017 2:31 pm
Sr. Member
Sr. Member

Joined: Mon Oct 26, 2009 1:33 pm
Posts: 232
Images: 213
Location: USA
Try this and go electric, or put a joggle in your flap handle :o Les K


Attachments:

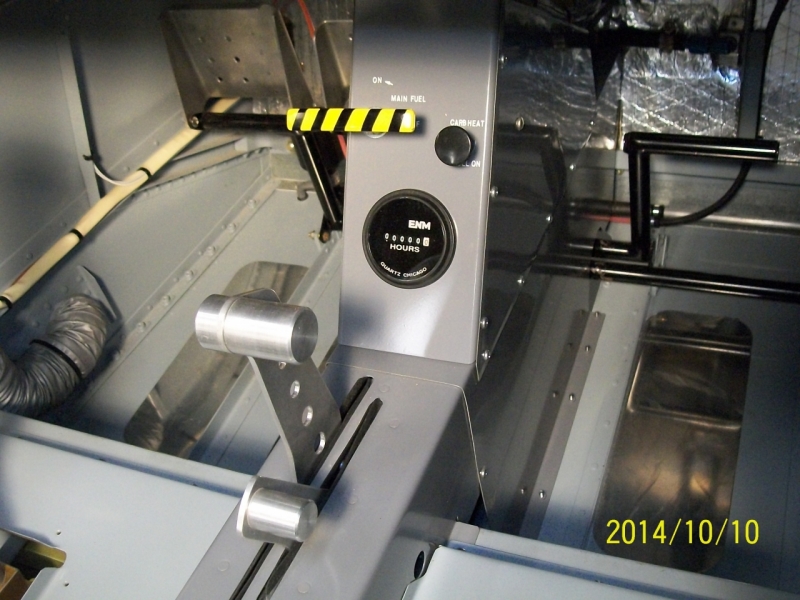

087A.jpg [ 356.87 KiB | Viewed 11295 times ]

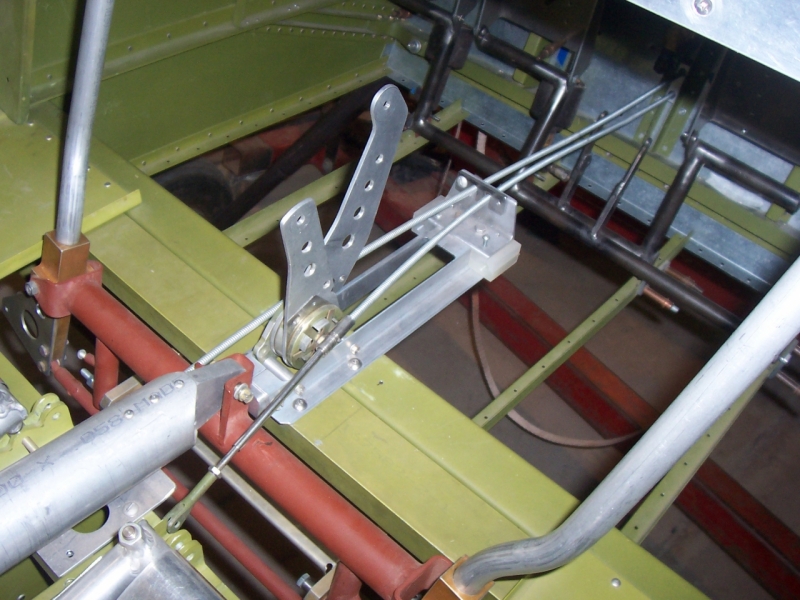

img 112 2913.jpg
img 112 2913.jpg [ 326.49 KiB | Viewed 11295 times ]
Top
 Profile Personal album

Rich Brazell
PostPosted: Mon Jan 30, 2017 4:09 pm
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3108
Images: 64
Location: Jamul, CA (San Diego area)
NICE JOB LES ! I am sure you machined all the parts . :o Looking forward to seeing it at Sedona this year ! ;)

RB O0


Top
 Profile Personal album

1albee
PostPosted: Mon Jan 30, 2017 9:01 pm
Sr. Member
Sr. Member

Joined: Sat Oct 31, 2015 6:58 pm
Posts: 172
Images: 0
I am thinking on the joggle idea, I have a idea to cut the flap handle 6" from the forward end, machine a threaded sleeve to fit over the remaining handle and TIG it into place so a aluminum angled extension can be screwed on the sleeve and held in place with set screws. Since the sliding portion will no longer slide, due to the bend. I am thinking at the bend using a two piece inner rod with a very stiff coiled spring (think toilet auger) in the bent portion of the new flap handle to allow movement. The only load is compression for the inner sliding portion and the coiled spring should tolerate the small movement of the flap release. Any input would be helpful.

Thanks Phil


Top
 Profile Personal album

thorpdrvr
PostPosted: Mon Jan 30, 2017 9:38 pm
Full Member
Full Member

Joined: Wed Oct 21, 2009 12:35 pm
Posts: 103
Images: 4
Location: USA
I have a friction lock throttle, button lock carb heat and ratchet mixture cable and am happy with the operation of all. Only control I would ever have vernier would be the mixture. Did the pain of the vernier throttle turn you onto the quadrant idea?

Bernie


Top
 Profile Personal album

1albee
PostPosted: Tue Jan 31, 2017 6:26 am
Sr. Member
Sr. Member

Joined: Sat Oct 31, 2015 6:58 pm
Posts: 172
Images: 0
I own a twin Comanche with a quadrant and having things the same works out for me.


Top
 Profile Personal album

1albee
PostPosted: Sun Feb 12, 2017 6:39 am
Sr. Member
Sr. Member

Joined: Sat Oct 31, 2015 6:58 pm
Posts: 172
Images: 0
It's installed, after listing to some of your advice. I was able to curve the flap handle to the right, it misses the quadrant by about one inch. Found a bender made out of cast iron at Harbor Freight for under $40.00 that did the job. Thanks for the help.
