Ryan Allen
PostPosted: Wed Jul 17, 2013 9:03 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana
The neoprene/rubber washer on my landing gear looks like it could stand to be replaced. Could I get a replacement washer, cut a slit in the washer, and slip it into place? The alternative installation process is not appealing.

What is the purpose of this washer?


Top
 Profile Personal album

dickwolff
PostPosted: Wed Jul 17, 2013 9:51 pm
Sr. Member
Sr. Member

Joined: Tue Nov 24, 2009 7:40 pm
Posts: 500
Images: 6
Location: Canada
Do it right, Ryan.

McMaster Carr has rubber with the right Duro. They are easy to make out of sheet stock. It's not just the washers ..... you may as well replace the rubber bushings too.

Once you get the weight off, the gear bolts are easy to remove.

D


Top
 Profile Personal album

Rich Brazell
PostPosted: Wed Jul 17, 2013 10:23 pm
Hero Member
Hero Member

Joined: Wed Oct 21, 2009 12:33 pm
Posts: 3108
Images: 64
Location: Jamul, CA (San Diego area)
If the washer looks like it needs to be replaced (is it cracked , broken ,missing ? ) then the bushing should be replaced also . I took the drawing to a local rubber supply house and they punched out a hand full to the required washers (and a few spares) from scrap material in a matter of minutes ! I think it cost me $15.00 ? Once they knew it was for a homebuilt aircraft . The washer and bushing act a shock absorbers and keep the gear from metal to metal contact ? ???

RB O0


Top
 Profile Personal album

fytrplt
PostPosted: Thu Jul 18, 2013 5:15 am
Hero Member
Hero Member
User avatar

Joined: Tue Oct 20, 2009 8:07 pm
Posts: 1156
Images: 2
Location: Lakeland, Florida, USA
Do NOT split the washer. I found some sheet rubber with fabric reinforcement in it. It lasts much longer. I wrote an article for the newsletter a while back that details the steps required for replacement of those washers.

_________________
Bob Highley
N711SH
SN 835
KLAL


Top
 Profile Personal album

dan
PostPosted: Thu Jul 18, 2013 7:01 am
Sr. Member
Sr. Member

Joined: Wed Oct 21, 2009 9:30 am
Posts: 898
Images: 0
Location: USA
I have a Die and the rubber to punch these washers..............Dan


Top
 Profile

Ryan Allen
PostPosted: Thu Jul 18, 2013 7:11 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana
Dan, we should talk! Can I pay you for the rubber and also pay you for your time to punch the washers?

I appreciate all the info, I'll go hunt up the newsletter entry about this subject.

Will I have to remove the engine and motor mount in order to get the weight off these bolts and replace the rubber bushings and washers? Or can I raise the front of the plane to get the main gear off the ground with the engine still on?


Top
 Profile Personal album

Bill Williams
PostPosted: Thu Jul 18, 2013 7:19 am
The last time Bob and I changed out these parts, we picked the fuselage off the floor clearing the tires and place it on saw horses. With a engine hoist supported the engine and gear leg just enough to take the weight off, unbolted replace parts . You do not have to remove the top gear leg bolt, let it pivot.


Top


Ryan Allen
PostPosted: Thu Jul 18, 2013 11:51 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana

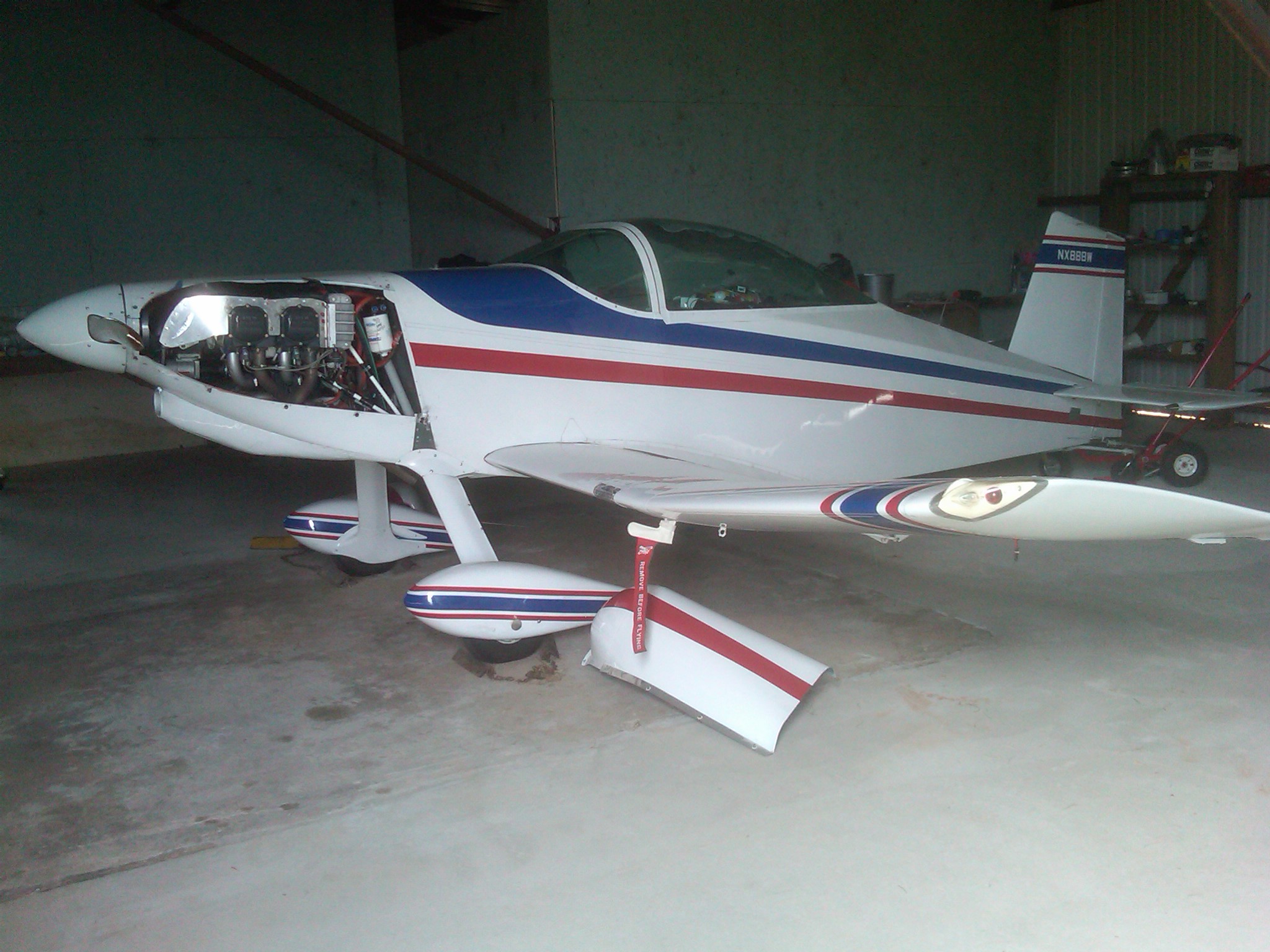

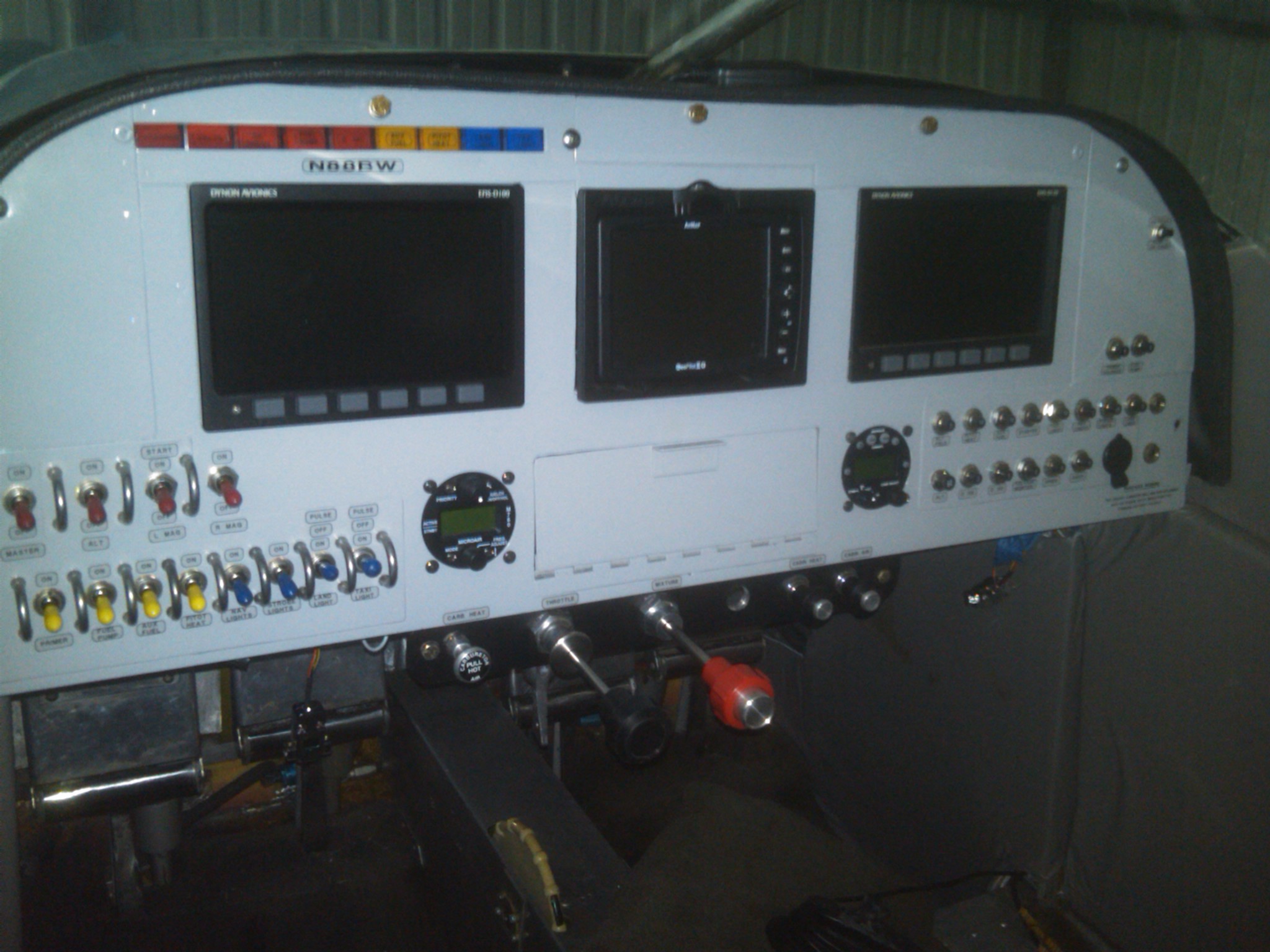

glad to hear that Bill. I am tired of working on my plane for a while. I'm ready to fly more. Heres a couple of pics of new engine (2 year old paint) and a new (2nd one I've done) panel.

Attachment:
IMG00866-20130711-1256.jpg [ 415.55 KiB | Viewed 12115 times ]


Attachment:
IMG00868-20130711-1257.jpg [ 534.39 KiB | Viewed 12115 times ]


Top
 Profile Personal album

dan
PostPosted: Thu Jul 18, 2013 6:03 pm
Sr. Member
Sr. Member

Joined: Wed Oct 21, 2009 9:30 am
Posts: 898
Images: 0
Location: USA
What's your address Ryan..........Dan


Top
 Profile

Ryan Allen
PostPosted: Thu Jul 18, 2013 6:25 pm
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana
PM coming to you Dan.


Top
 Profile Personal album

dan
PostPosted: Wed Jul 24, 2013 8:29 am
Sr. Member
Sr. Member

Joined: Wed Oct 21, 2009 9:30 am
Posts: 898
Images: 0
Location: USA
Ryan, your washers were sent in the mail yesterday, you should have Friday - Monday...............Dan


Top
 Profile

Ryan Allen
PostPosted: Wed Jul 24, 2013 11:25 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana
Dan, thank you very much. That's good of you to take the time to do that. I appreciate it. Ryan
