peterjaypriest
 Post subject: Garmin G3X Panel Upgrade
PostPosted: Tue Mar 08, 2022 12:34 am
Jr. Member
Jr. Member
User avatar

Joined: Tue May 18, 2021 1:21 pm
Posts: 78
Images: 0
Location: Elk Grove, CA
I'm a new Thorp guy, as of last summer. I was a Bonanza guy for many years. Man, nothing flies better than a Bonanza. Then I flew the Thorp! Now I'm a Thorp guy!

After just a few flights with this airplane, I began to investigate some issues- both electrical (intermittent or inop radios, etc) and mechanical (fuel leaks, et al.) So in late November, I began to repair and or replace things. I didn't plan on replacing the whole instrument panel. It's easy to get carried away...

There's a long list of what's new, changed, or repaired. And its still in the final stages, but I expect to fly this weekend. We'll see.

Attachment:

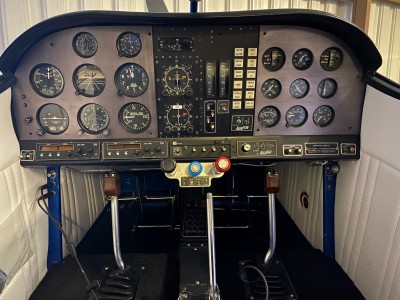

File comment: Old panel- built in 1978
Old Thorp Panel.jpg
Old Thorp Panel.jpg [ 850.57 KiB | Viewed 6789 times ]

Attachment:

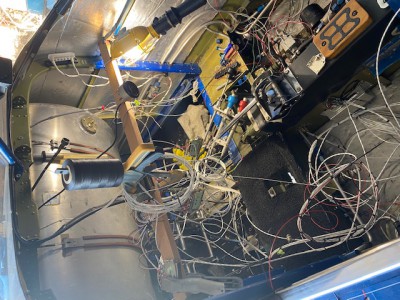

Panel wiring.jpg
Panel wiring.jpg [ 143.86 KiB | Viewed 6789 times ]


I found a lot of great information on this website, and also the Van's site. I love it when people share their experiences...! Thank you!!

I'll report back after flying it...

Peter


Attachments:
File comment: Updated panel.
New Thorp Panel.jpg
New Thorp Panel.jpg [ 797.76 KiB | Viewed 6789 times ]
Top
 Profile Personal album

Ryan Allen
PostPosted: Tue Mar 08, 2022 7:53 am
Hero Member
Hero Member
User avatar

Joined: Wed Oct 21, 2009 6:10 pm
Posts: 1123
Images: 0
Location: Louisiana
That looks very nice. You will enjoy that for sure.


Top
 Profile Personal album

chadmaisel2
PostPosted: Tue Mar 08, 2022 12:21 pm
Jr. Member
Jr. Member

Joined: Mon Sep 02, 2019 10:45 am
Posts: 70
Right there with you but decided to be both ;D



Top
 Profile

peterjaypriest
PostPosted: Tue Mar 08, 2022 3:55 pm
Jr. Member
Jr. Member
User avatar

Joined: Tue May 18, 2021 1:21 pm
Posts: 78
Images: 0
Location: Elk Grove, CA
That, Chad, looks like perfection! All of it!!


Top
 Profile Personal album

MartyG
PostPosted: Thu Mar 10, 2022 10:06 am
Newbie
Newbie
User avatar

Joined: Mon Jun 07, 2021 8:29 pm
Posts: 48
Location: Y51 - Viroqua, WI
Awesome job! I just finished my panel upgrade and did the first flight yesterday. Everything worked flawlessly, which I definitely did not expect to happen. Good luck on your test flight, hope you have a good result!

_________________
Marty G
N50LE
YouTube Channel
martygrosse@yahoo.com


Top
 Profile

peterjaypriest
PostPosted: Sun Mar 13, 2022 11:54 pm
Jr. Member
Jr. Member
User avatar

Joined: Tue May 18, 2021 1:21 pm
Posts: 78
Images: 0
Location: Elk Grove, CA
Hey guys...

So, I was able to fly the Thorp today, after 3+ months of work! Whew! My hat is off to all of you that have built, or rebuilt, or refurbished an airplane! It's a lot of work!

The weather conditions weren't ideal for a test flight, but good enough, I guess. Somewhat windy with lots of clouds. The wing loading of the T-18 smoothed out the bumps, which was nice!

I'm not used to glass at all, and found myself hunting for the vertical speed, etc. I needed to stall it on this flight to find out where the number was on the airspeed indicator, and it's dramatically different (lower) than the previous number on the mechanical asi. I'll need to fly it a bit with more testing before I'll feel comfortable.

Everything worked, including the Garmin autopilot. But pulling the FAA report on ADS-B showed some problem- probably with the configuration of the 330ES transponder. So, I'll deal with that this week.

Really stoked to have a flying airplane again, and one with what seems to be a good, capable autopilot! Need to fly it places now, but where?

Peter
[url=https://postimg.cc/SnGkRZ34][img]


Attachments:
IMG_1991.jpg [ 47.66 KiB | Viewed 6680 times ]
IMG_1993.jpg [ 82.44 KiB | Viewed 6680 times ]
Top
 Profile Personal album

leewwalton
PostPosted: Thu Mar 17, 2022 10:43 am
Administrator
Administrator
User avatar

Joined: Tue Oct 20, 2009 4:09 pm
Posts: 1715
Images: 107
Location: Houston, TX
I did that last year ... seems like about the same 3 mo time frame. Yes! I would not want to do that ever again. Garmin installs are brutal! That being said .. once it's all in place and working right ... slick as can be!!


Attachments:
IMG_5601.jpg [ 2.17 MiB | Viewed 6640 times ]
IMG_5600.jpg [ 2.25 MiB | Viewed 6640 times ]

_________________
Lee Walton
Houston, TX
N51863,N118LW
KEFD
